EYRAbeads

EYRAbeads are carboxylated magnetic beads intended for custom conjugation and use in multiplex immunoassays or serology testing. They’re compatible with both Mabtech EYRA™ and flow cytometry platforms.

Turn your ideas into reality, one analyte at a time. EYRAbeads let you build fully custom multiplex assays by conjugating the antibodies or proteins of your choice. Create your own combinations, explore new targets, and make every panel uniquely yours.

Select Bead ID
F
E
D
C
B
A
2
A2
3
E3
C3
A3
4
F4
E4
D4
C4
B4
A4
5
F5
E5
D5
C5
B5
A5
6
F6
E6
D6
C6
B6
A6
7
F7
E7
D7
C7
B7
A7
8
F8
E8
D8
C8
B8
A8
Bead ID map
EYRAbeads (A3)
EYRAbeads (A5)
EYRAbeads (A7)
EYRAbeads (C3)
EYRAbeads (C5)
EYRAbeads (C7)
EYRAbeads (E3)
EYRAbeads (E7)
EYRAbeads (E5)
EYRAbeads (A2)
EYRAbeads (A4)

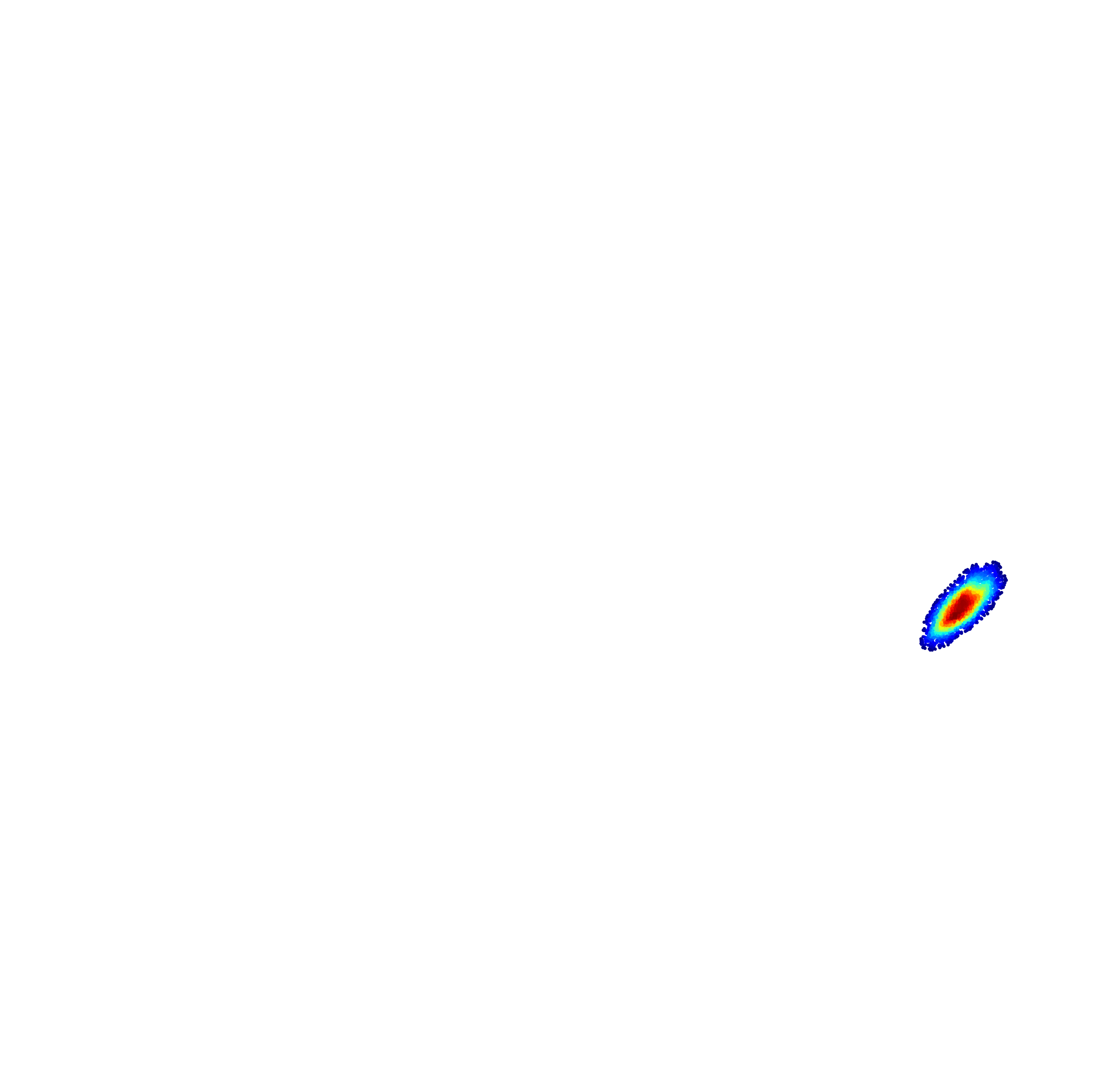

EYRAbeads (A6)

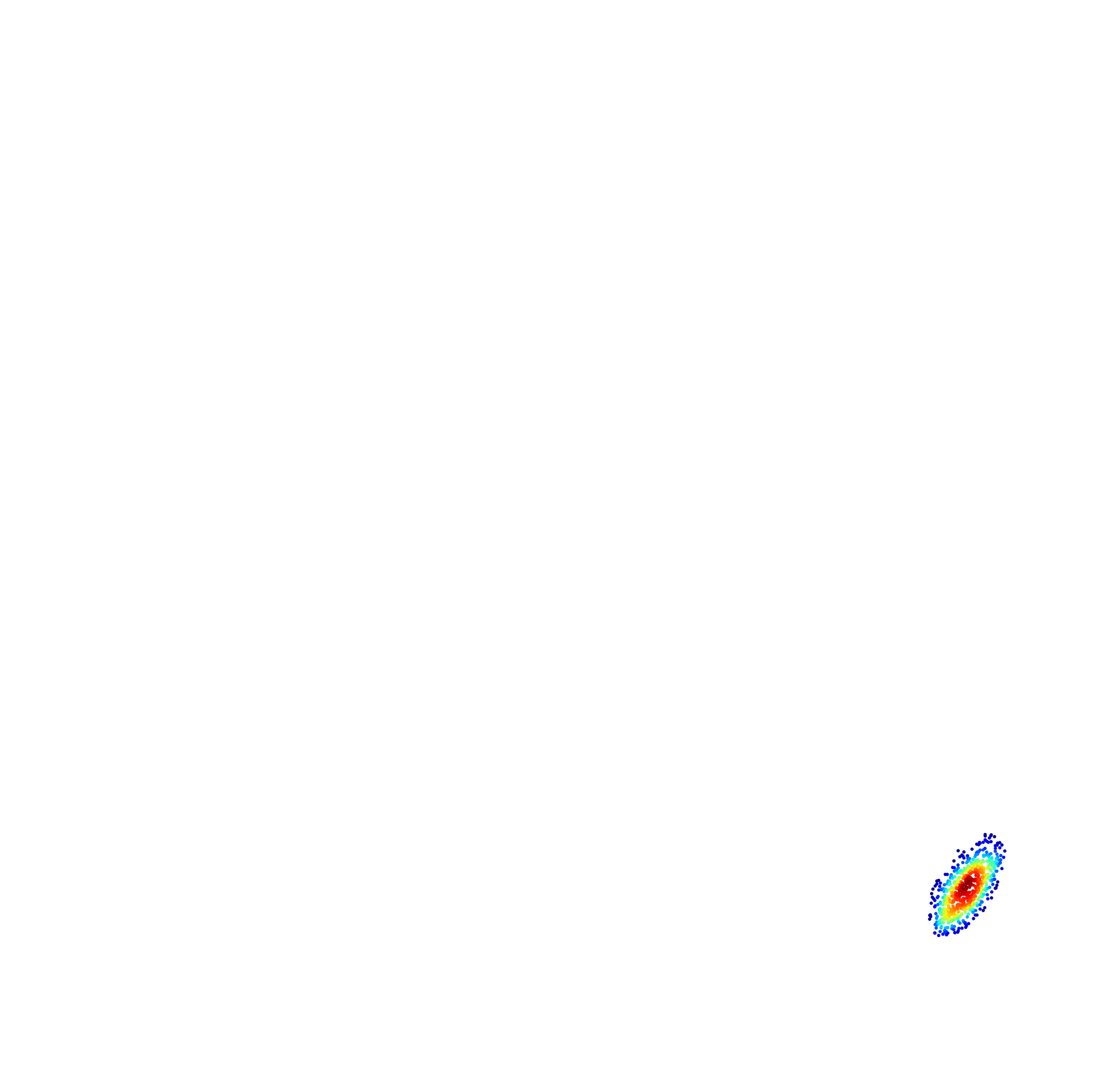

EYRAbeads (A8)

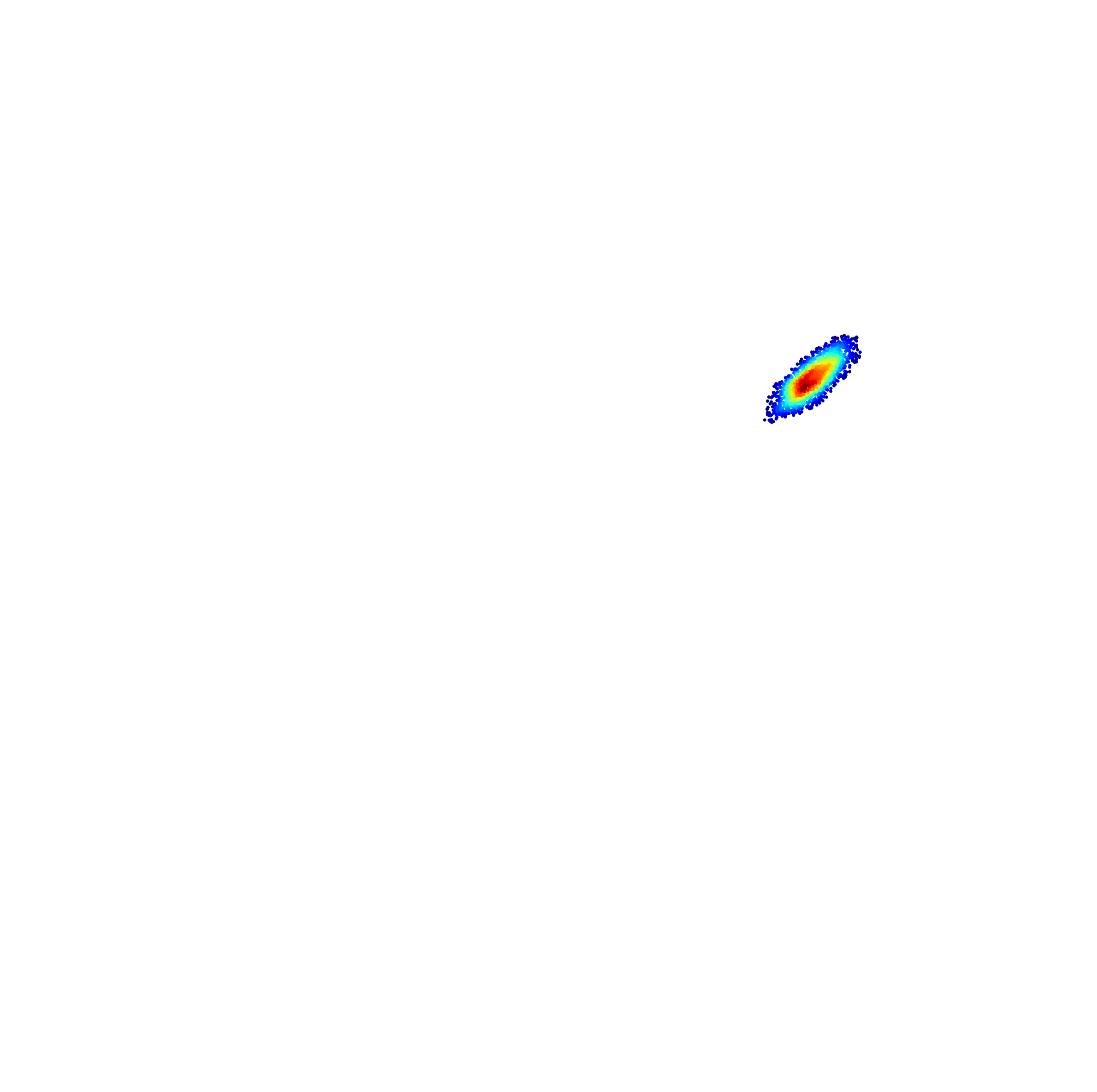

EYRAbeads (B4)

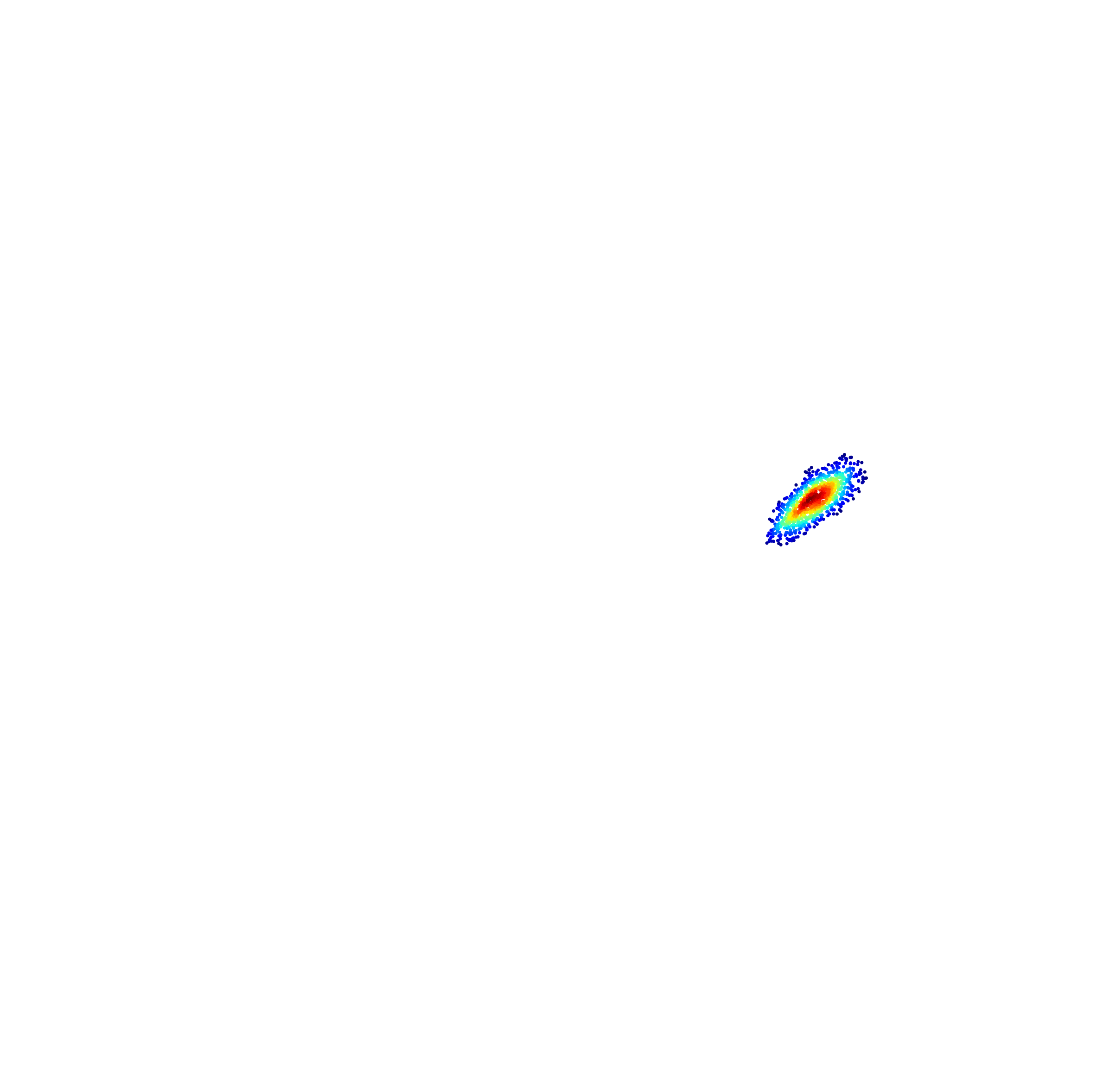

EYRAbeads (B5)

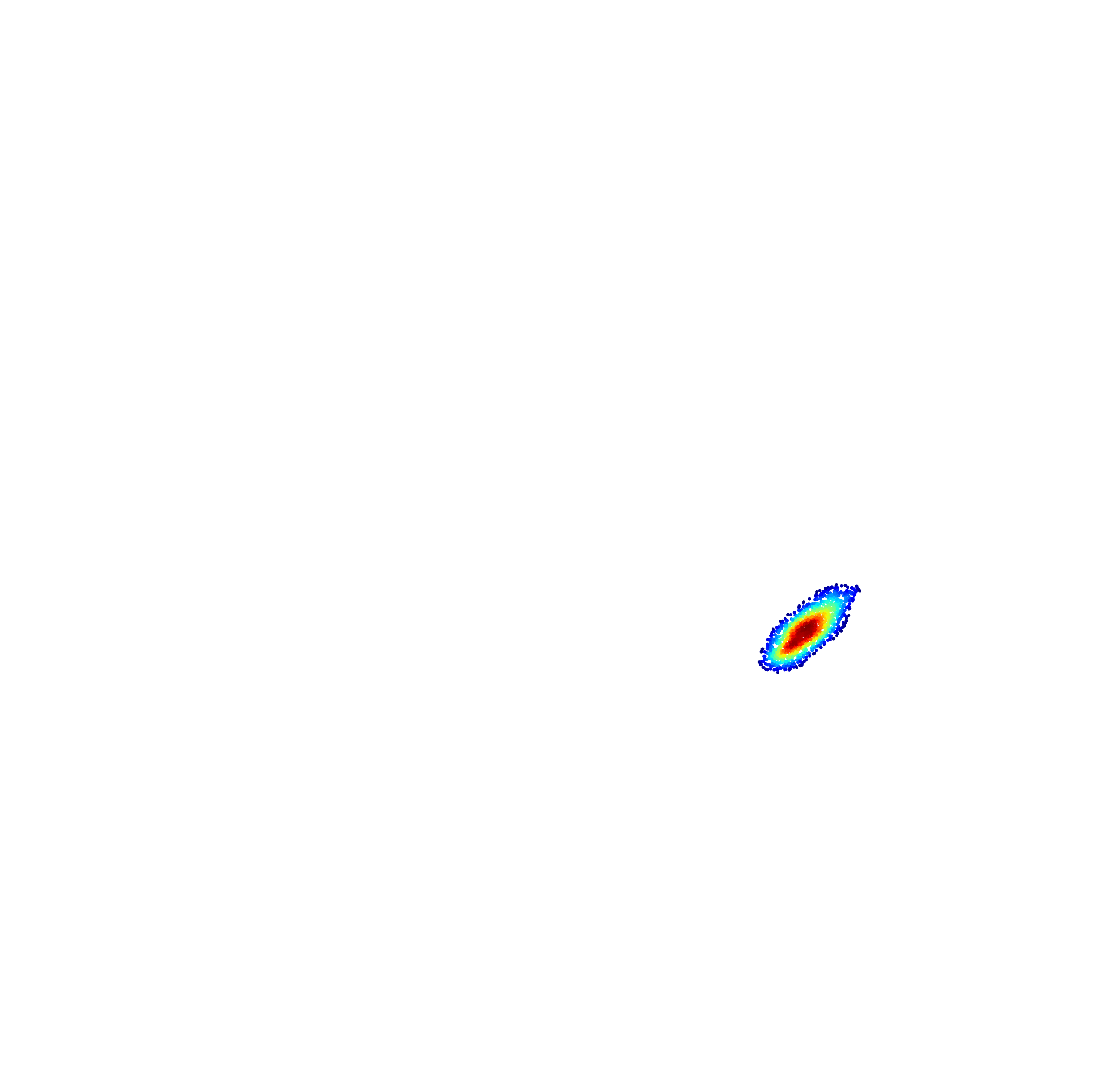

EYRAbeads (B6)

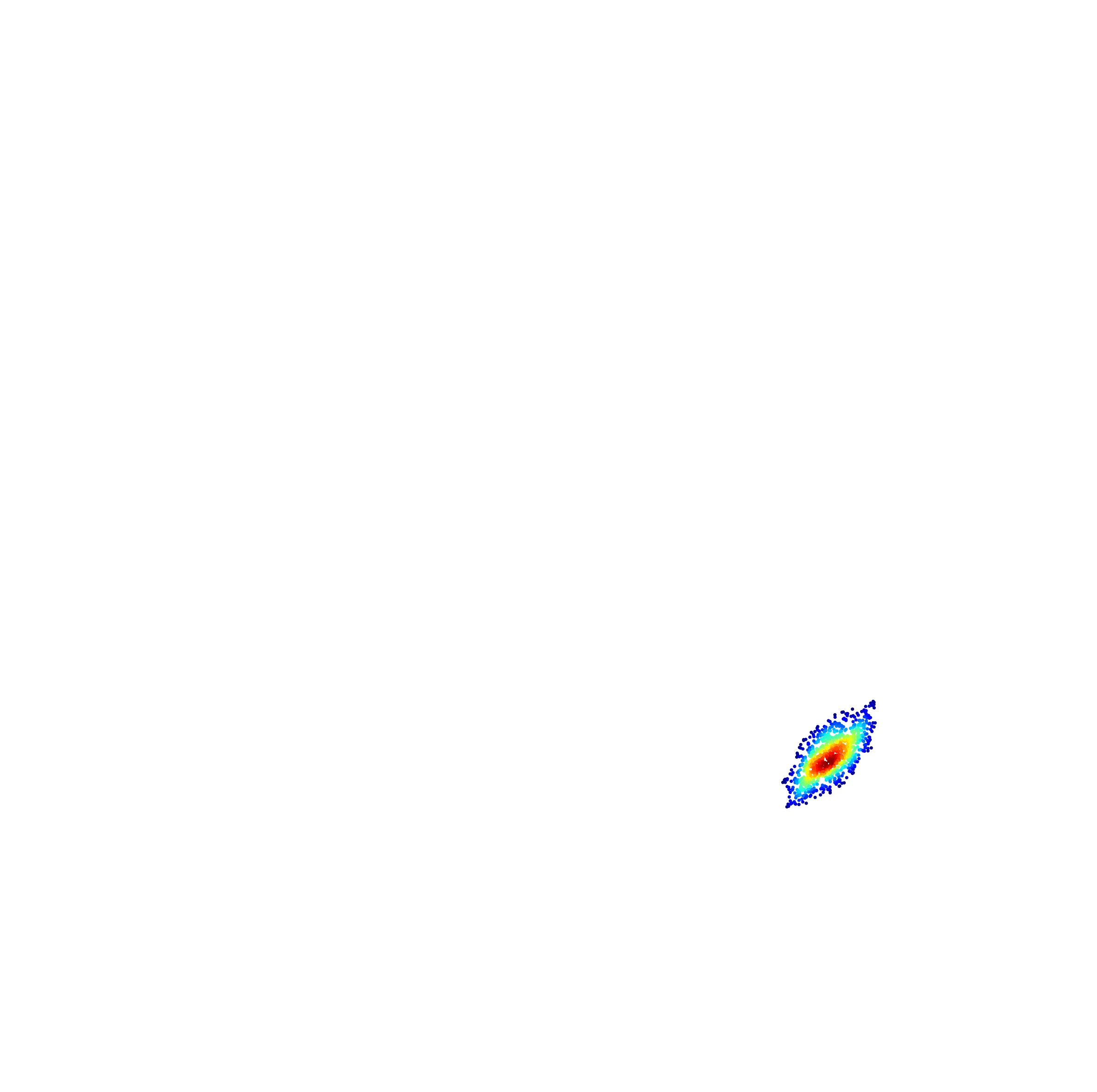

EYRAbeads (B7)
EYRAbeads (B8)

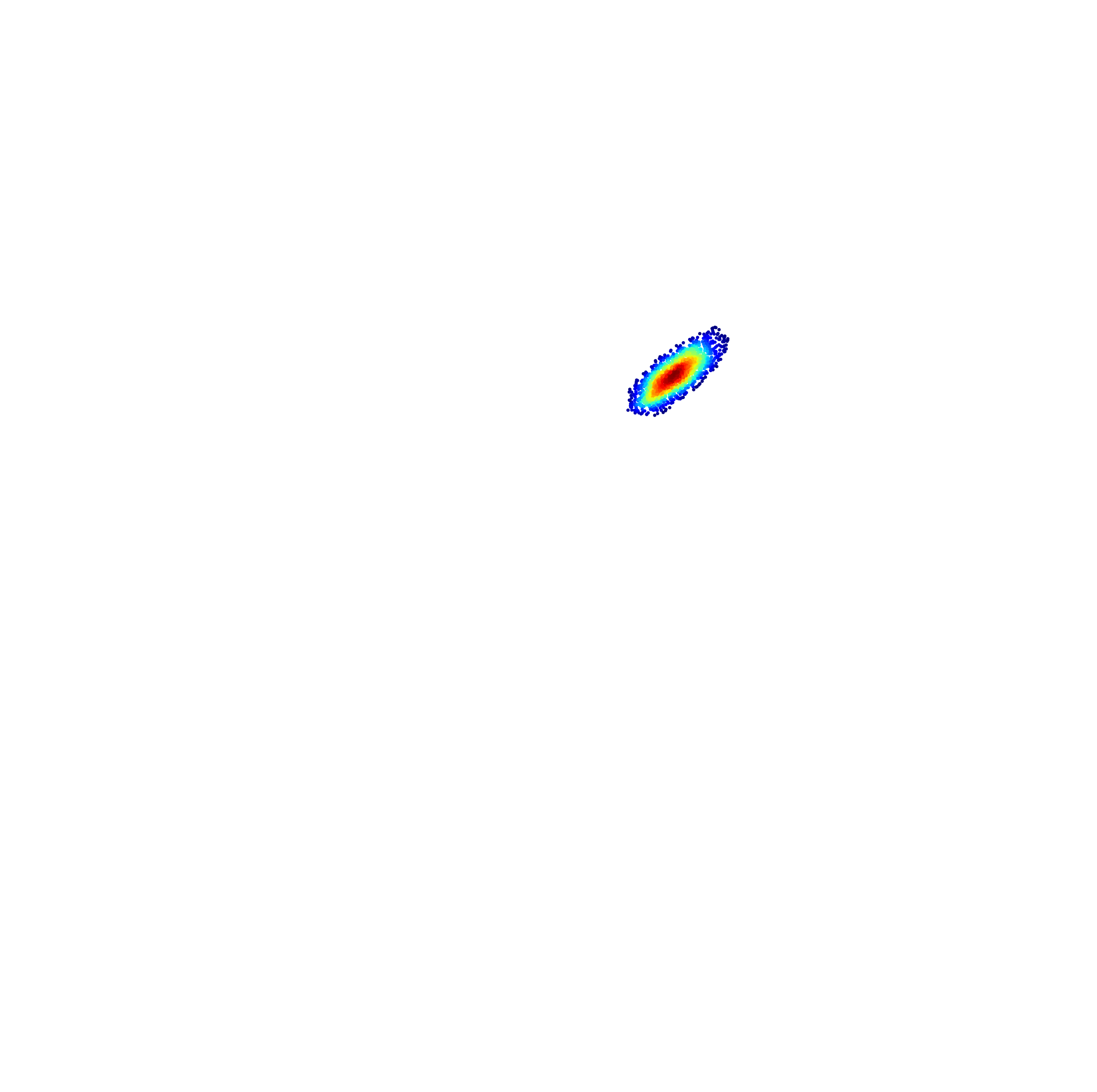

EYRAbeads (C4)

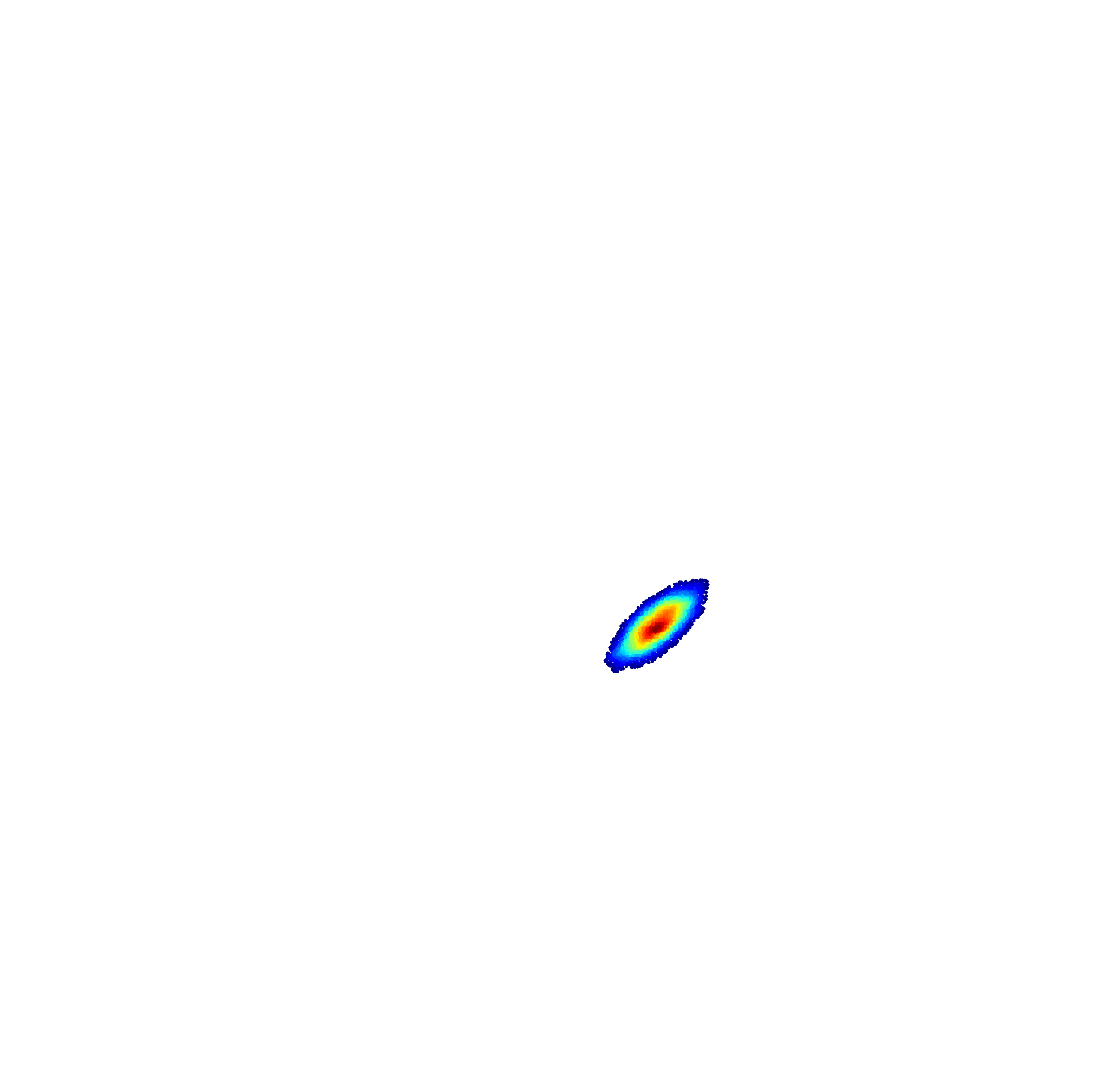

EYRAbeads (C6)

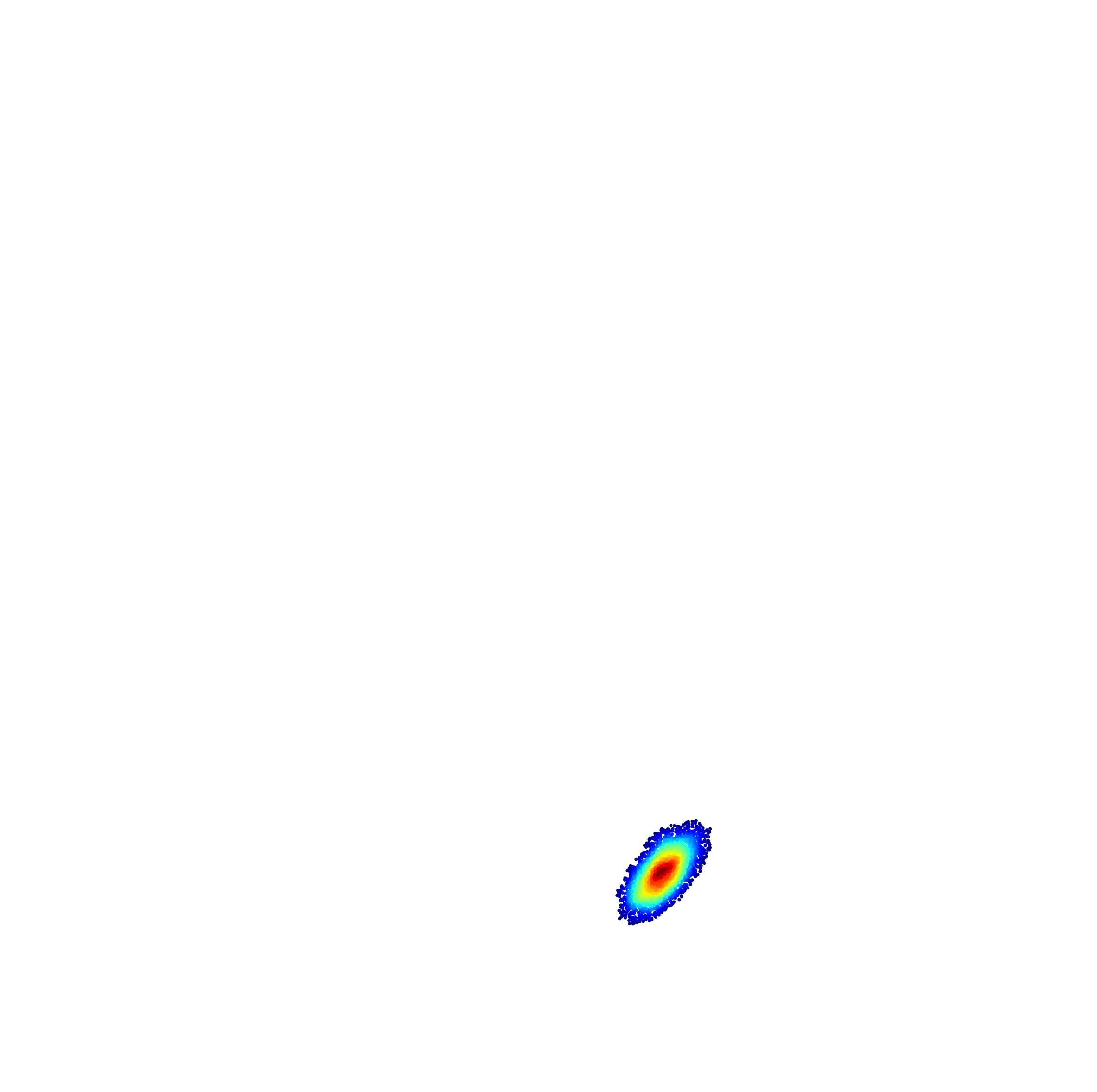

EYRAbeads (C8)

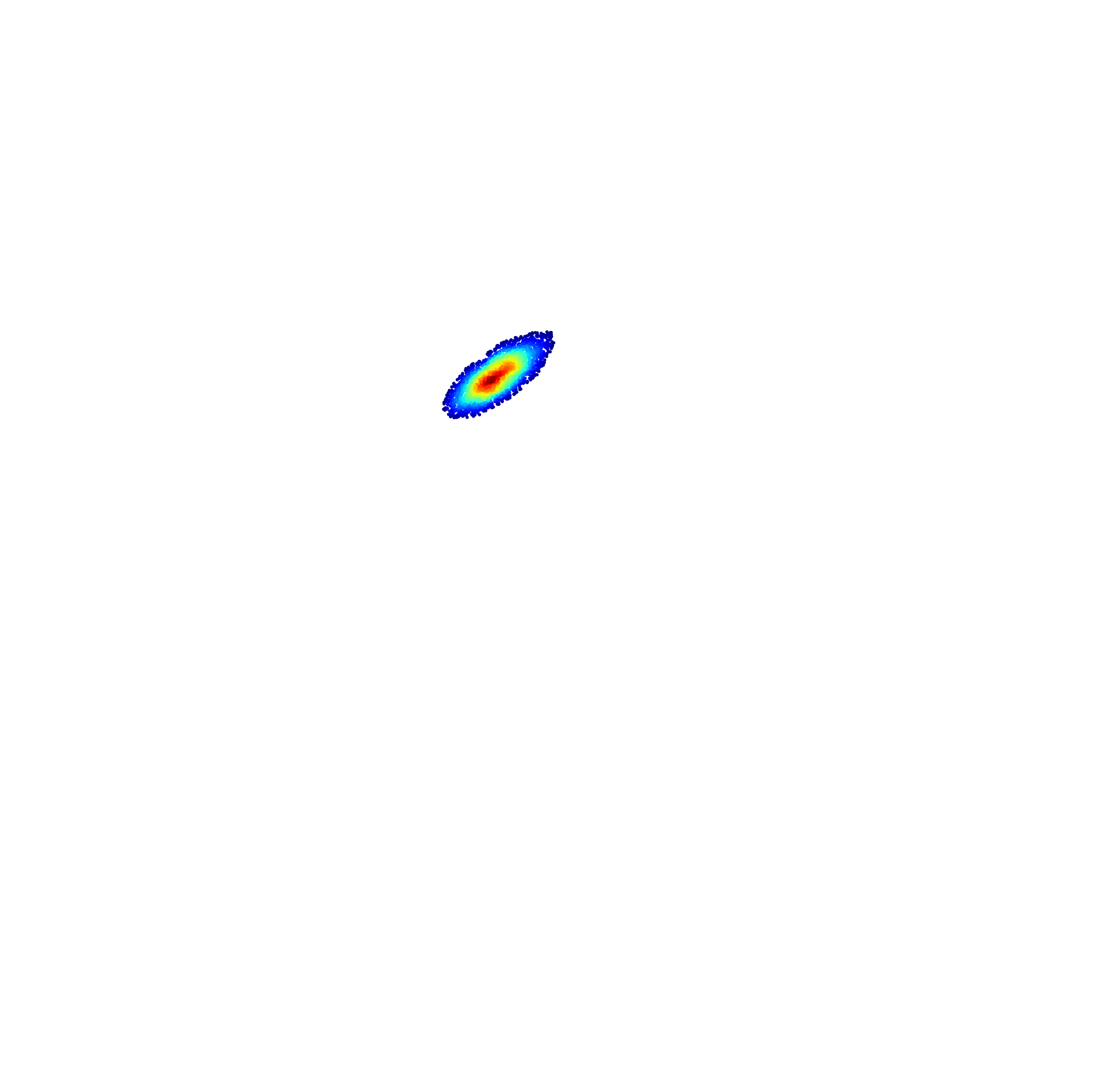

EYRAbeads (D4)

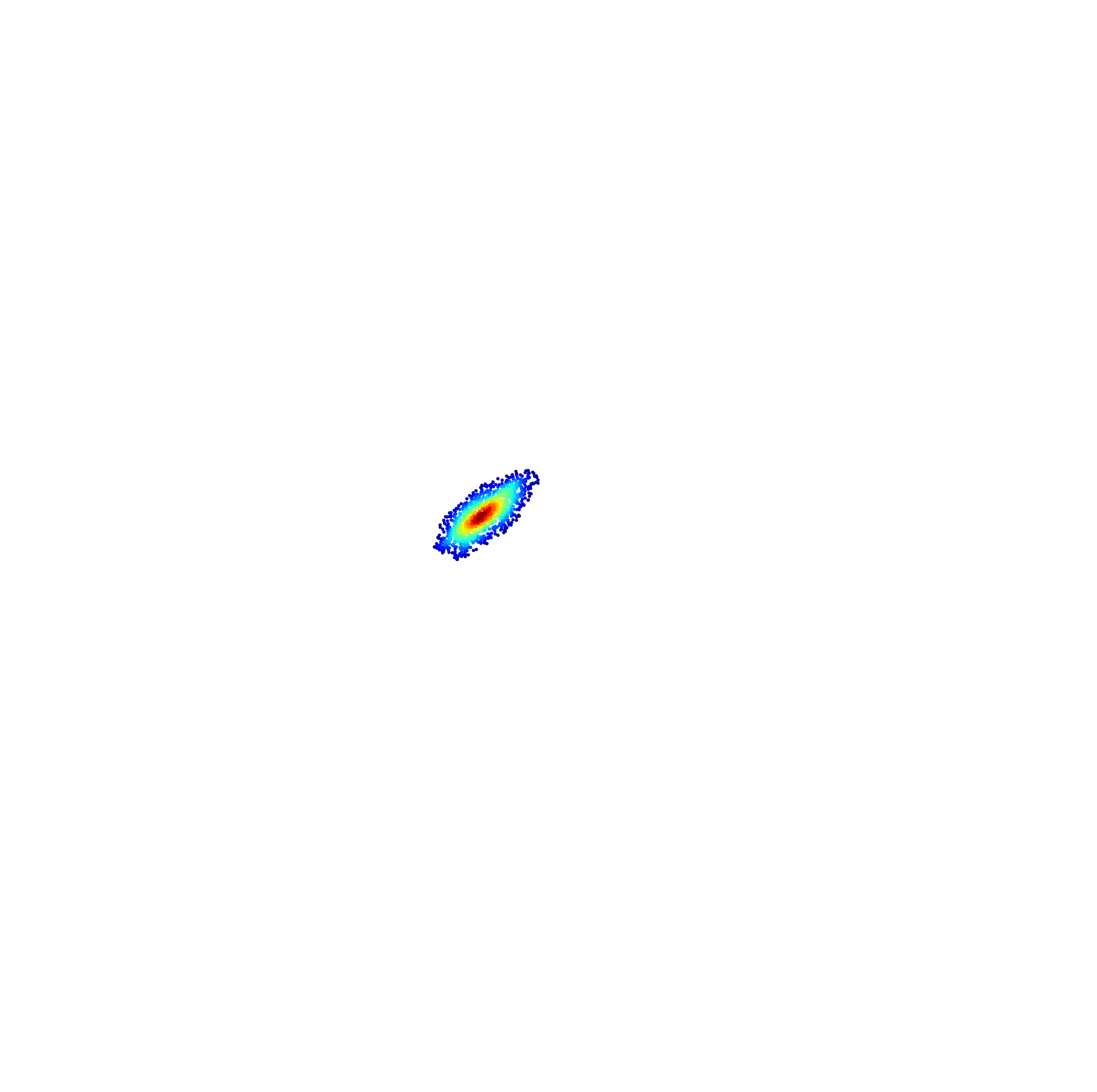

EYRAbeads (D5)

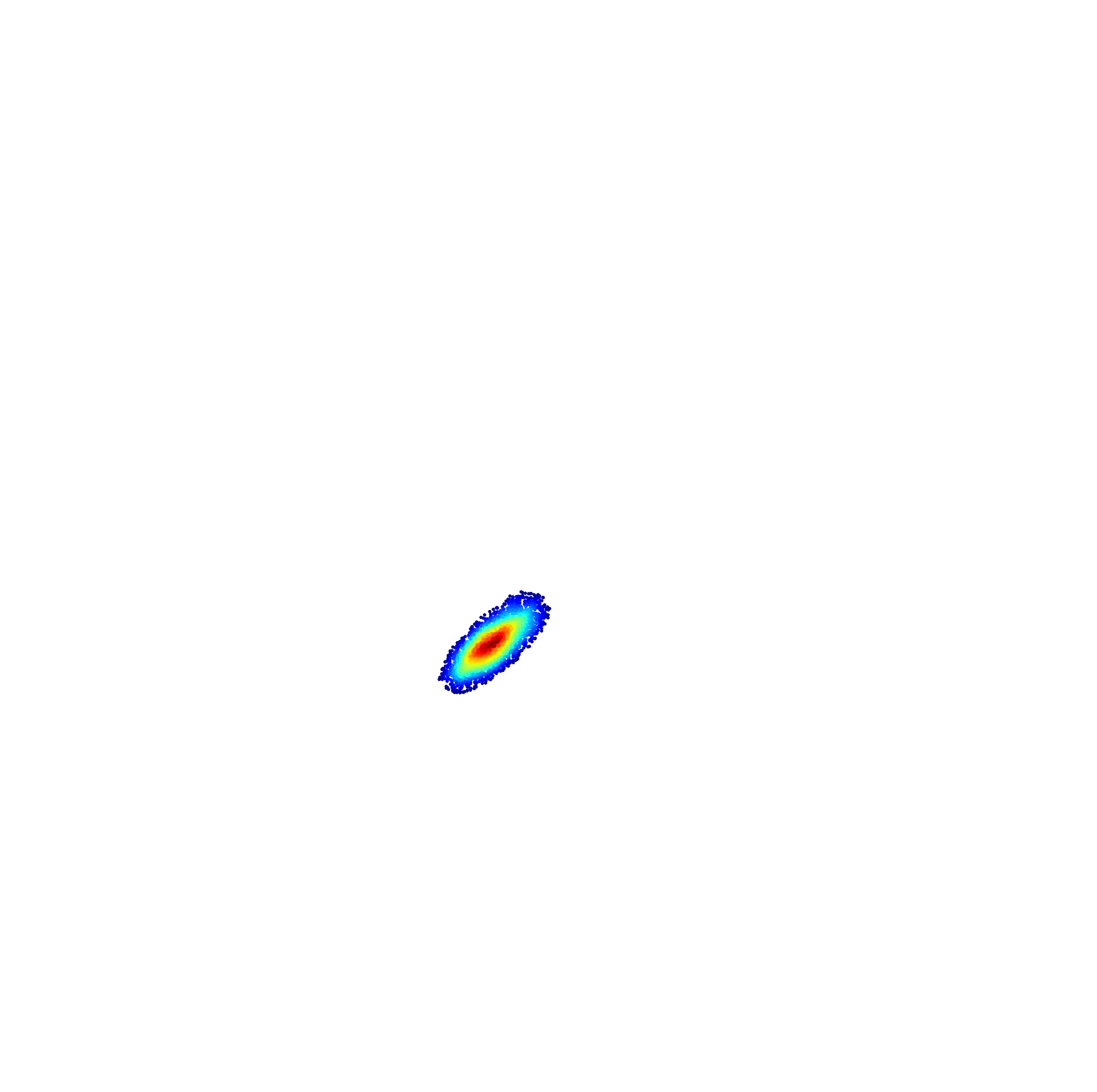

EYRAbeads (D6)

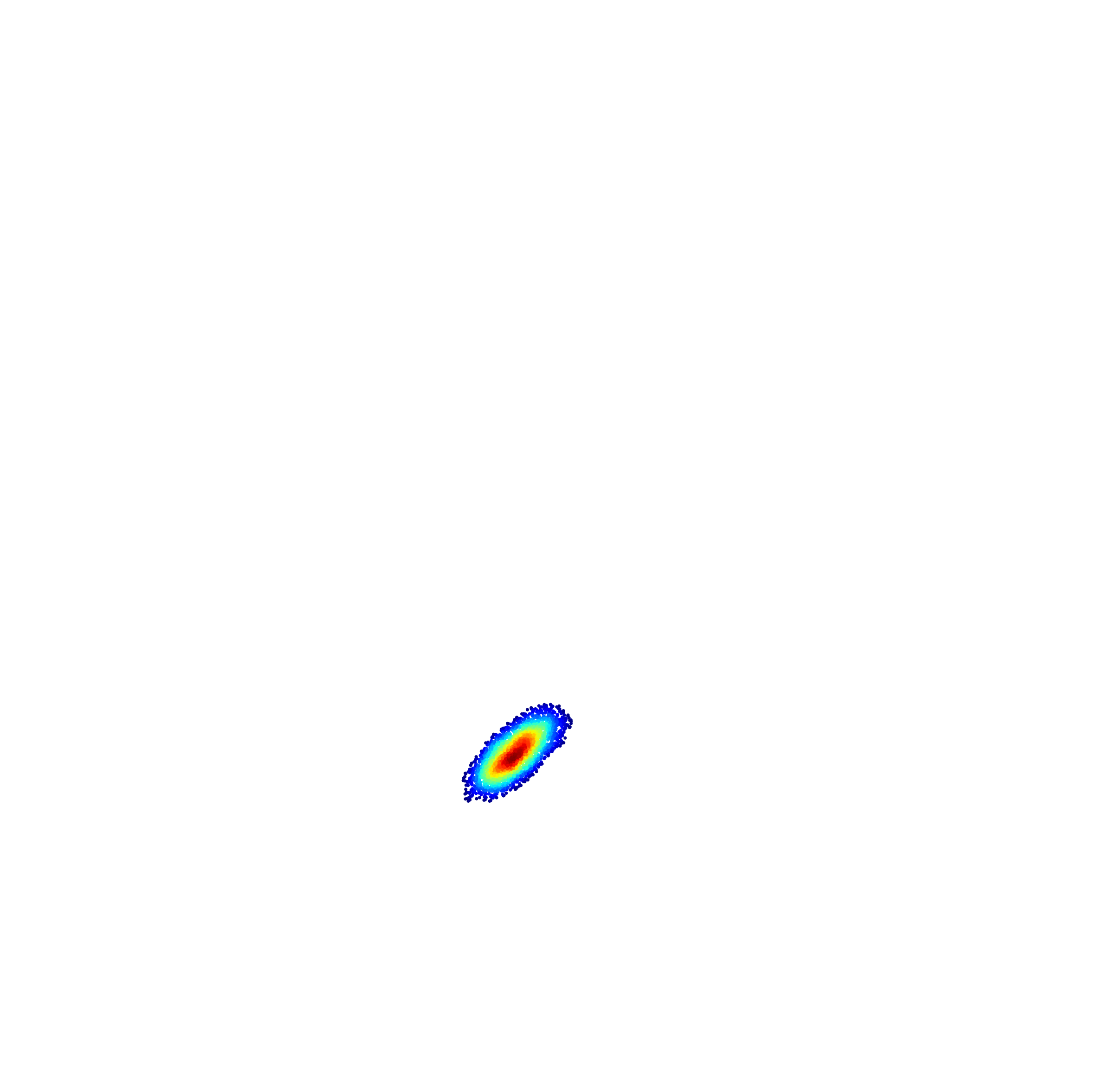

EYRAbeads (D7)

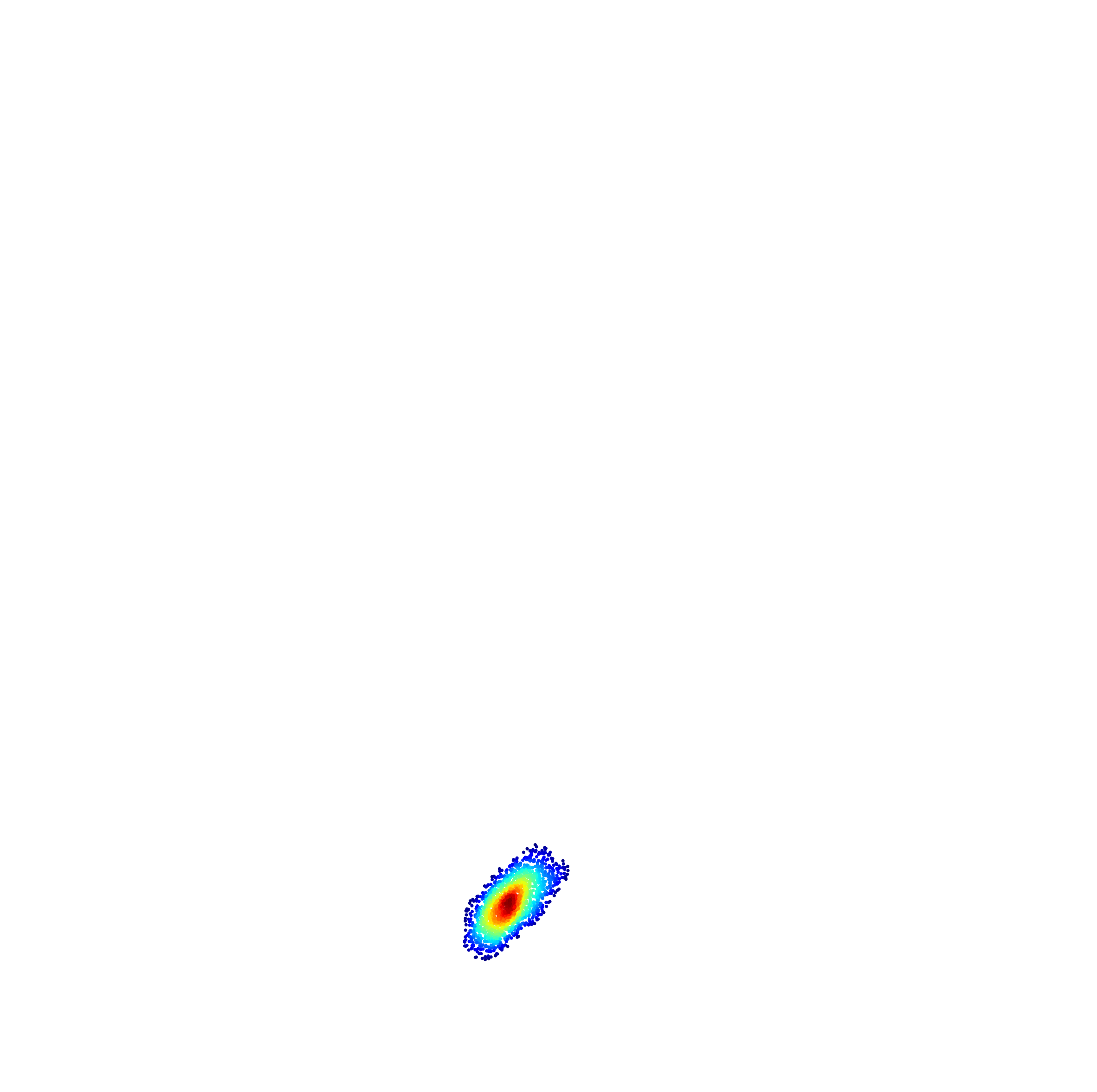

EYRAbeads (D8)

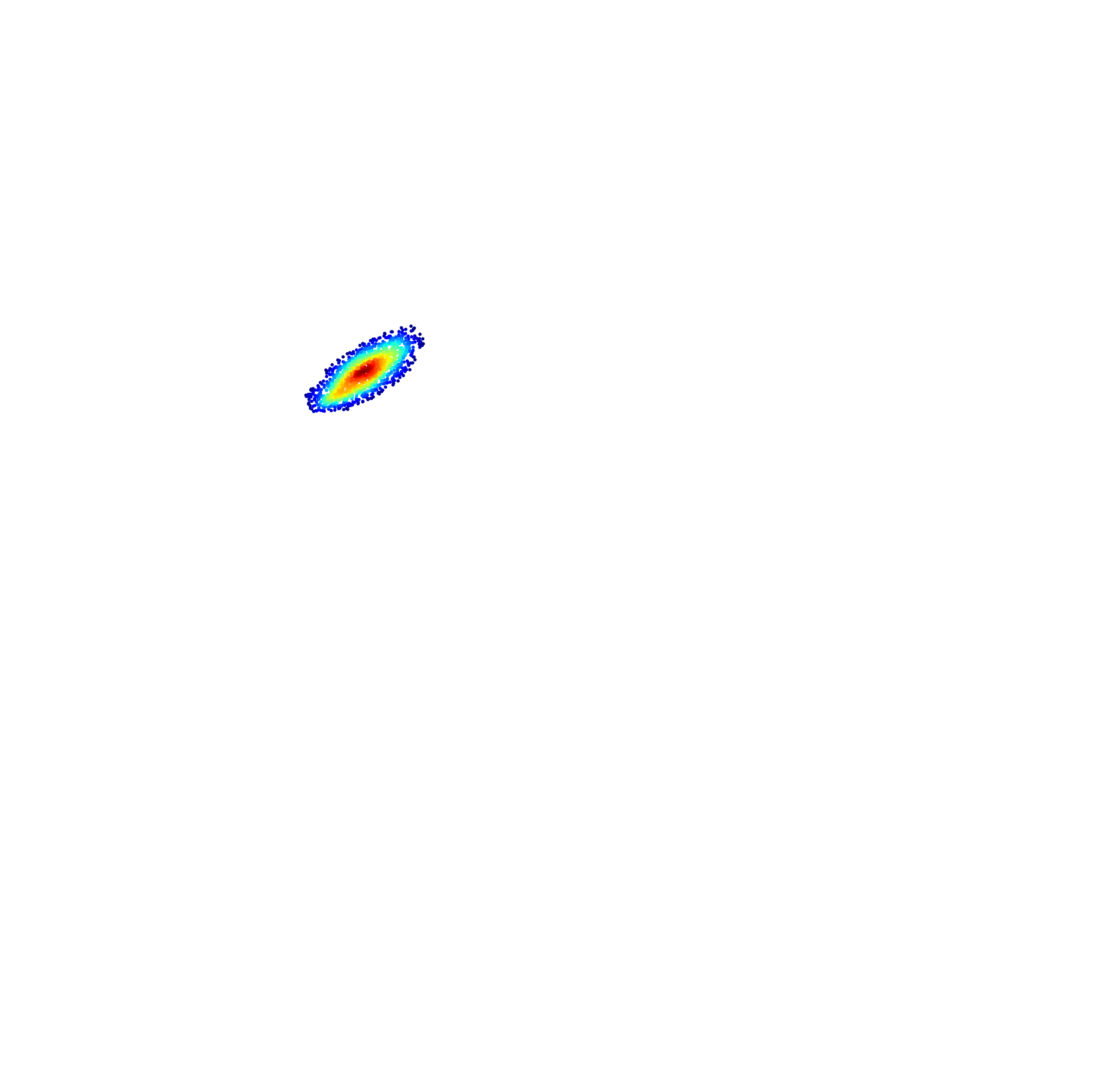

EYRAbeads (E4)

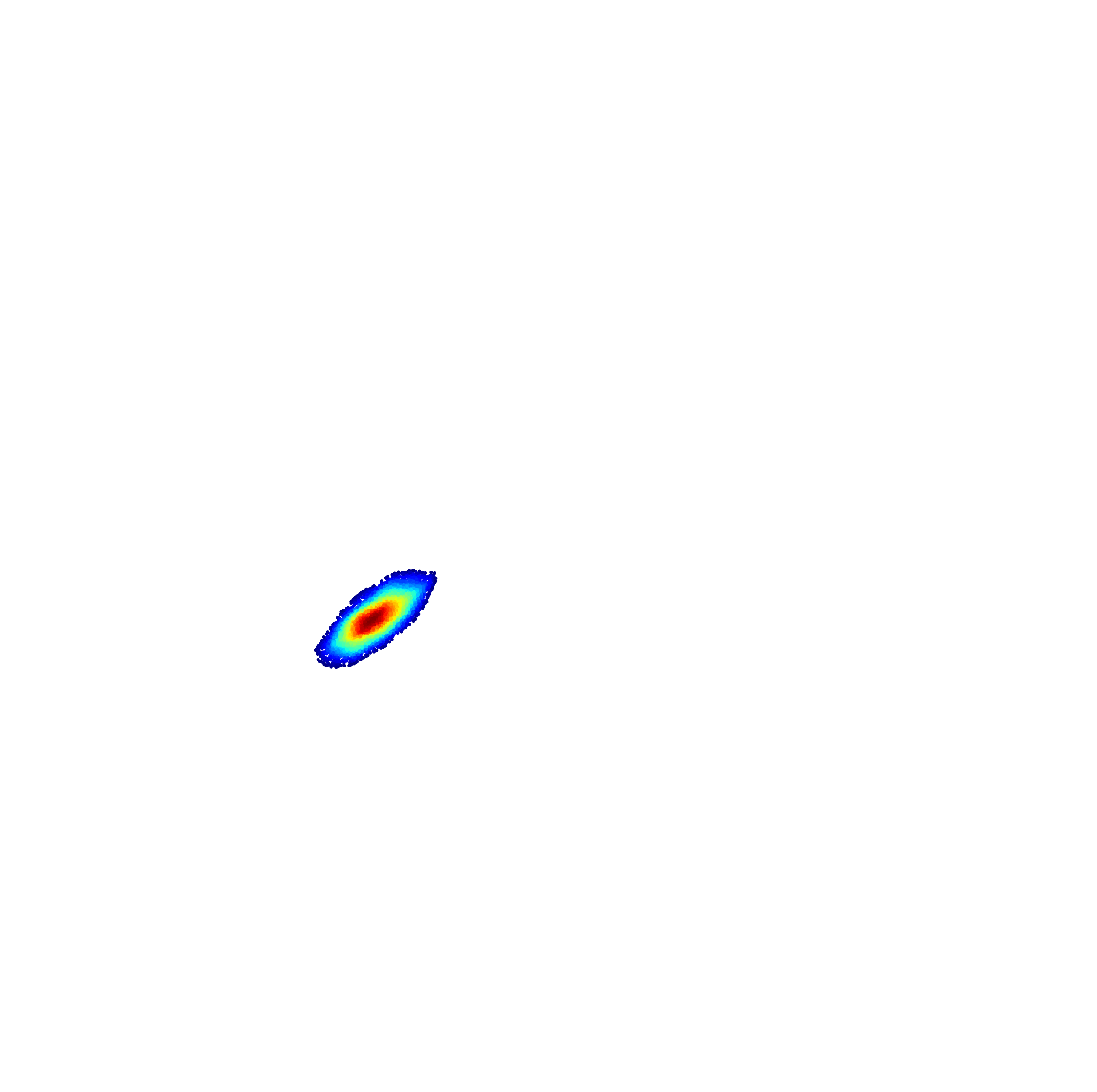

EYRAbeads (E6)

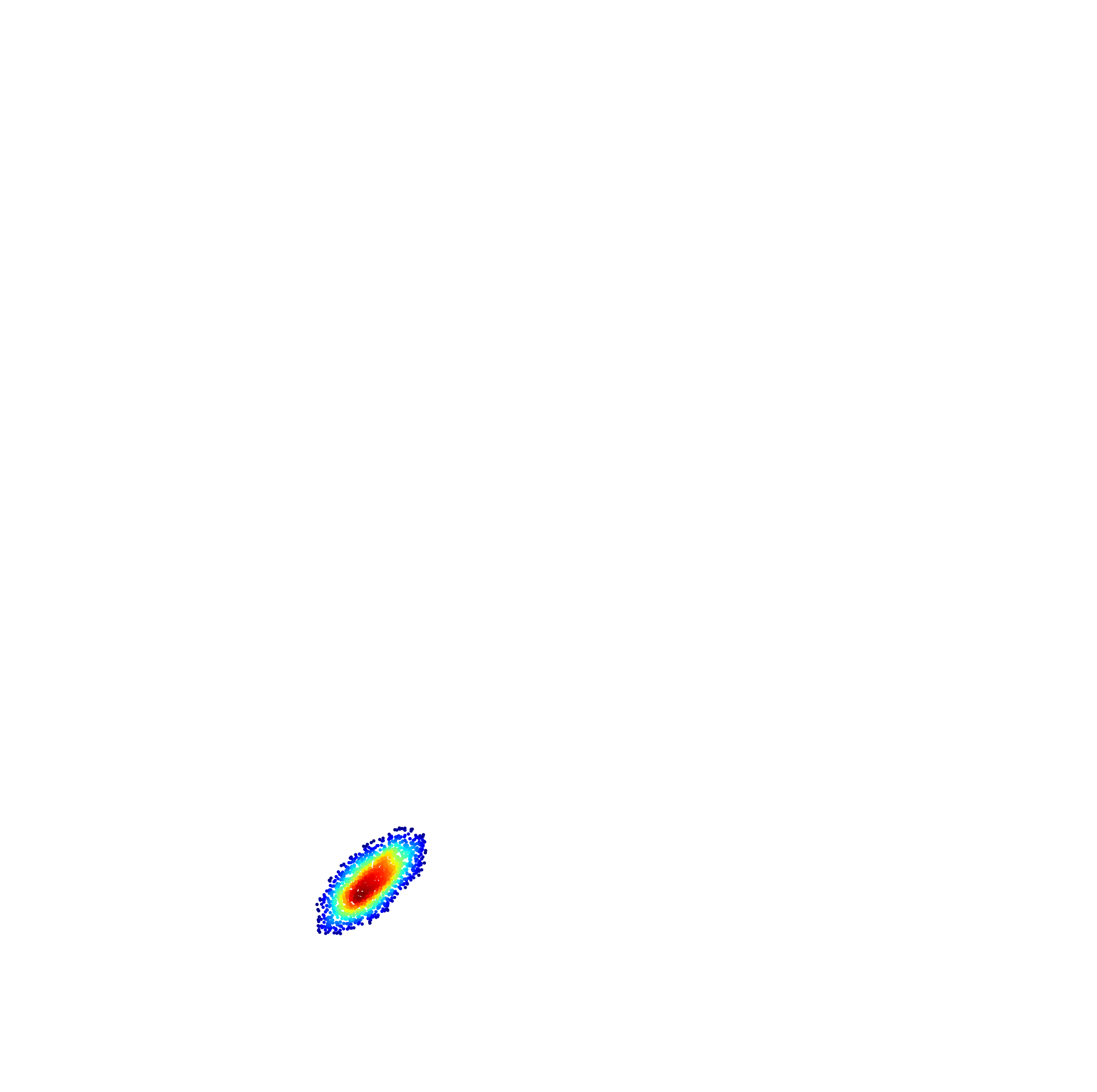

EYRAbeads (E8)

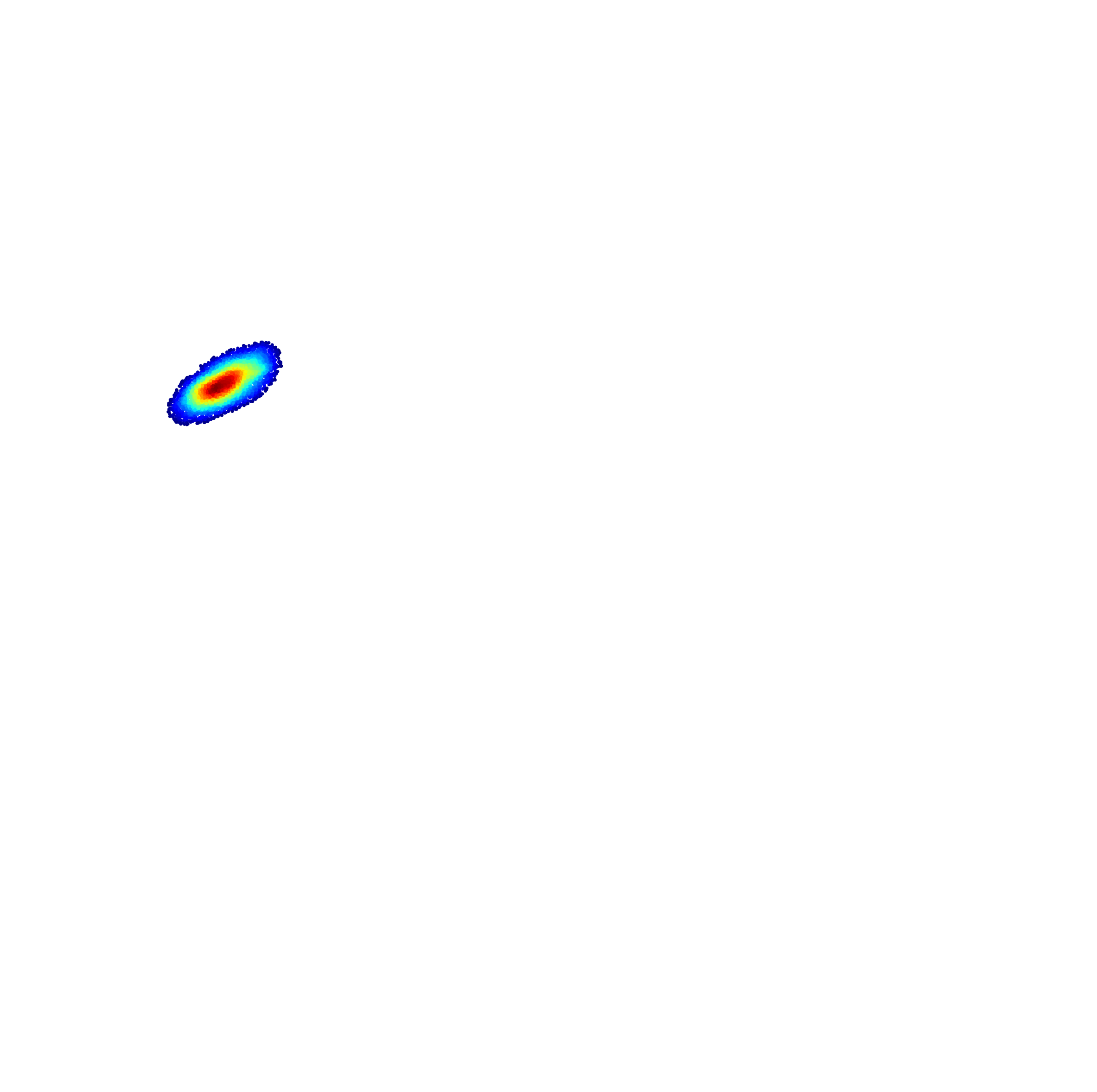

EYRAbeads (F4)
EYRAbeads (F5)
EYRAbeads (F6)

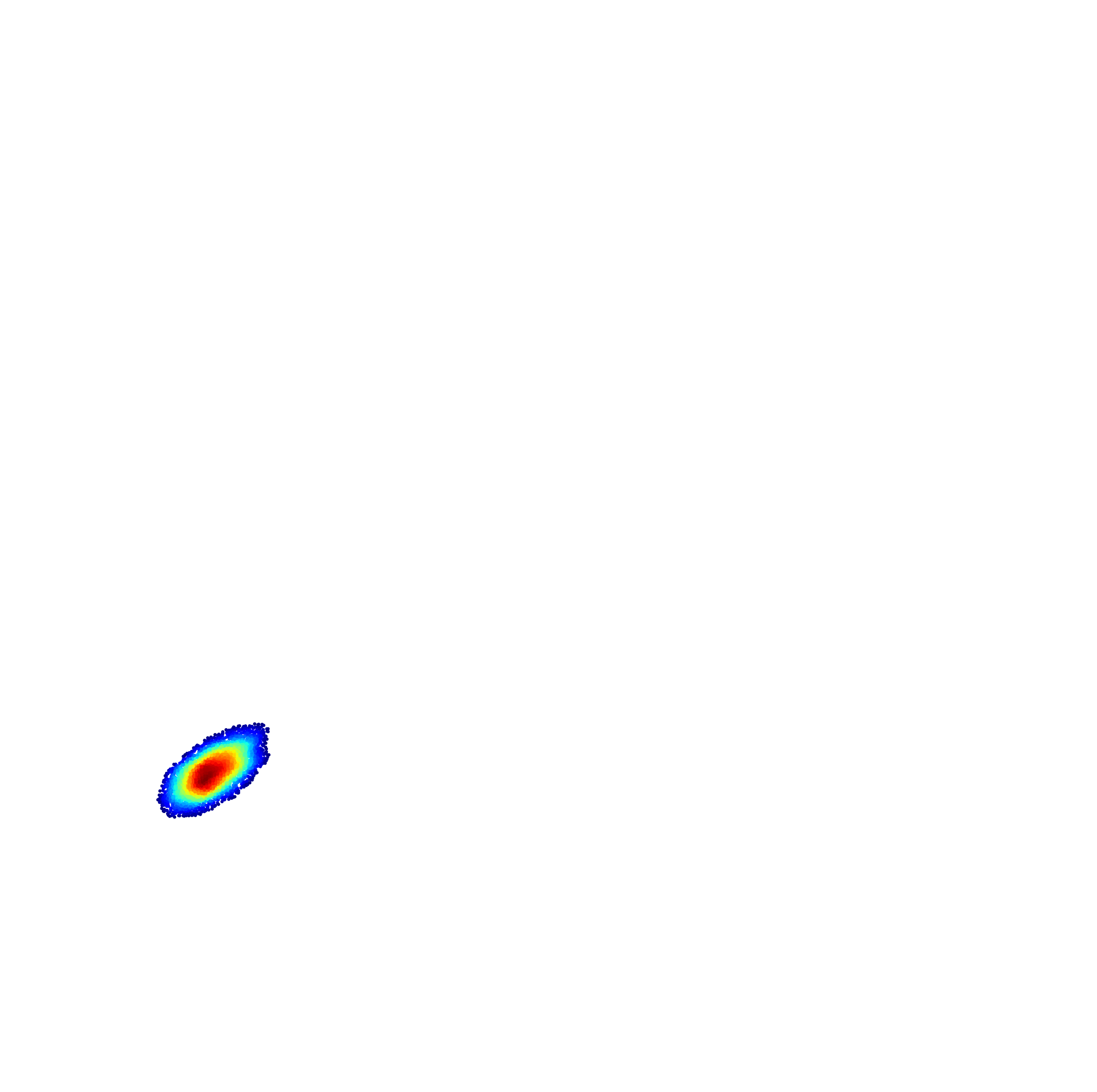

EYRAbeads (F7)

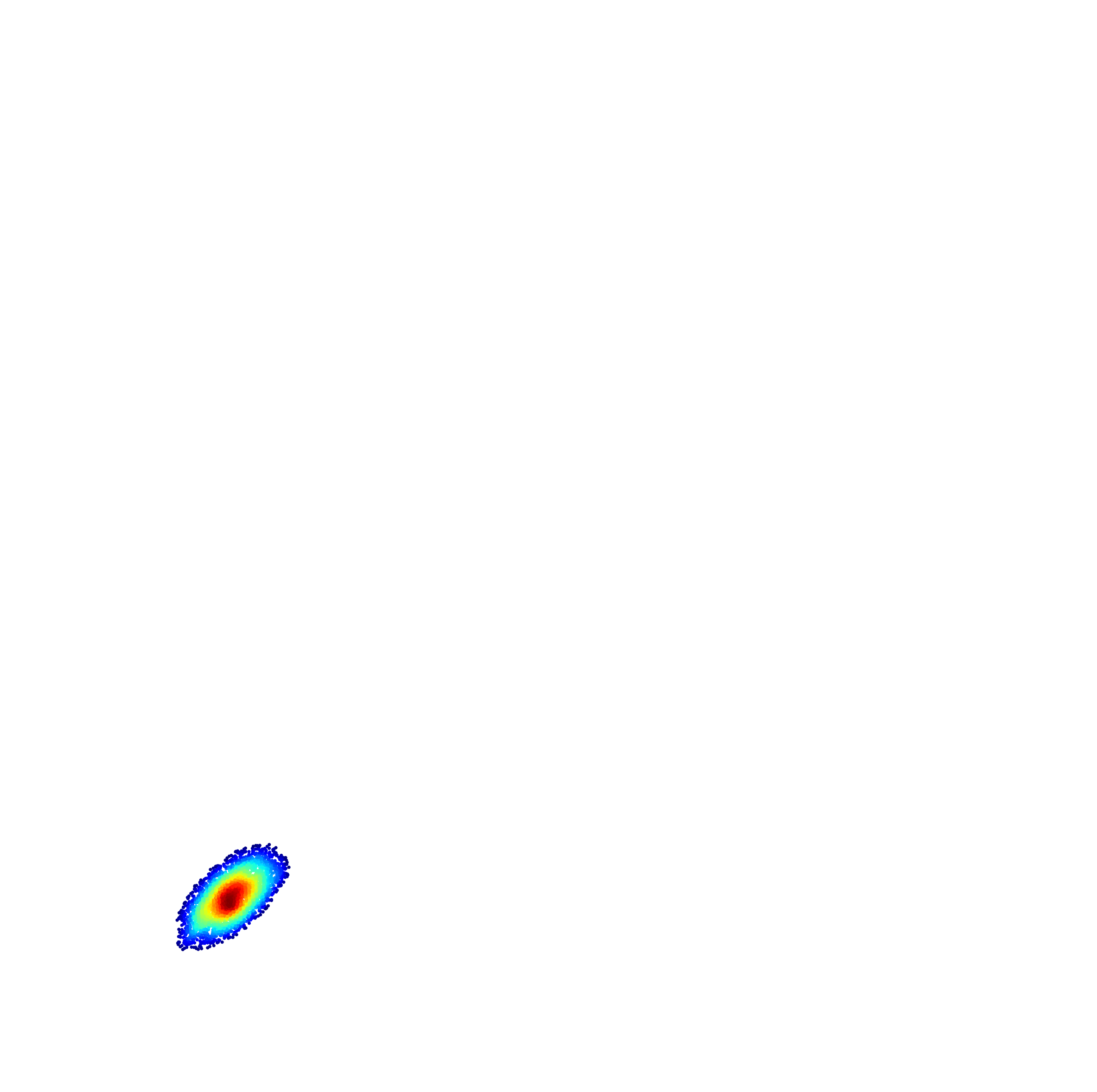

EYRAbeads (F8)
overlay
CodeBead IDDatasheetQuantity

Start by selecting bead IDs to the left.

Product specifications

Intended use

EYRAbeads are intended for the conjugation of antibodies and other proteins for use in custom multiplex assays. They are suitable for use in multiplex immunoassays or serology testing with Mabtech EYRA™ or flow cytometry. For research use only. Not for use in diagnostic procedures.

Introduction

EYRAbeads are carboxylated magnetic beads intended for custom conjugation and use in multiplex immunoassays or serology testing. They’re compatible with both Mabtech EYRA™ and flow cytometry platforms.

Turn your ideas into reality, one analyte at a time. EYRAbeads let you build fully custom multiplex assays by conjugating the antibodies or proteins of your choice. Create your own combinations, explore new targets, and make every panel uniquely yours.

Description
  • EYRAbeads are 8 µm paramagnetic, dual-dyed microspheres designed for multiplex analysis.
  • Each bead ID is defined by a unique ratio of two fluorescent small-molecule dyes (APC and APC-Cy7 equivalents), enabling simultaneous detection of multiple analytes within a single sample.
  • The bead surface is functionalized with carboxyl groups, allowing covalent coupling of antibodies or other proteins via carbodiimide chemistry.
  • EYRAbeads are light sensitive: minimize light exposure during handling and assay setup.
Product details
ProductEYRAbeads
ApplicationMultiplex
Bead type

Paramagnetic polymer

Bead dye

APC and APC-Cy7 spectral equivalents

Bead size

8 µm

Surface chemistry

Carboxyl

Concentration20 million/ml
Size16 million beads per vial
Supplied in

Deionized water with Tween and 0.0014% Kathon

Shipping and storage
Shipping

Shipped at ambient temperature

Storage

Store product at 4-8°C.

  • A range of buffers for the conjugation experiment (Protocol)
  • Tubes for conjugation
  • Magnetic separation rack
  • Tube rotator
  • Precision pipettes
Documents
Protocol
Bead IDs
Product codeBead IDSizeDatasheetSDSPopulation map
EYRAbeads (A3)5150-A3-16A3EYRAbeads (A3)DatasheetSDS Show population
EYRAbeads (A5)5150-A5-16A5EYRAbeads (A5)DatasheetSDS Show population
EYRAbeads (A7)5150-A7-16A7EYRAbeads (A7)DatasheetSDS Show population
EYRAbeads (C3)5150-C3-16C3EYRAbeads (C3)DatasheetSDS Show population
EYRAbeads (C5)5150-C5-16C5EYRAbeads (C5)DatasheetSDS Show population
EYRAbeads (C7)5150-C7-16C7EYRAbeads (C7)DatasheetSDS Show population
EYRAbeads (E3)5150-E3-16E3EYRAbeads (E3)DatasheetSDS Show population
EYRAbeads (E5)5150-E5-16E5EYRAbeads (E5)DatasheetSDS Show population
EYRAbeads (E7)5150-E7-16E7EYRAbeads (E7)DatasheetSDS Show population
